Product Overview

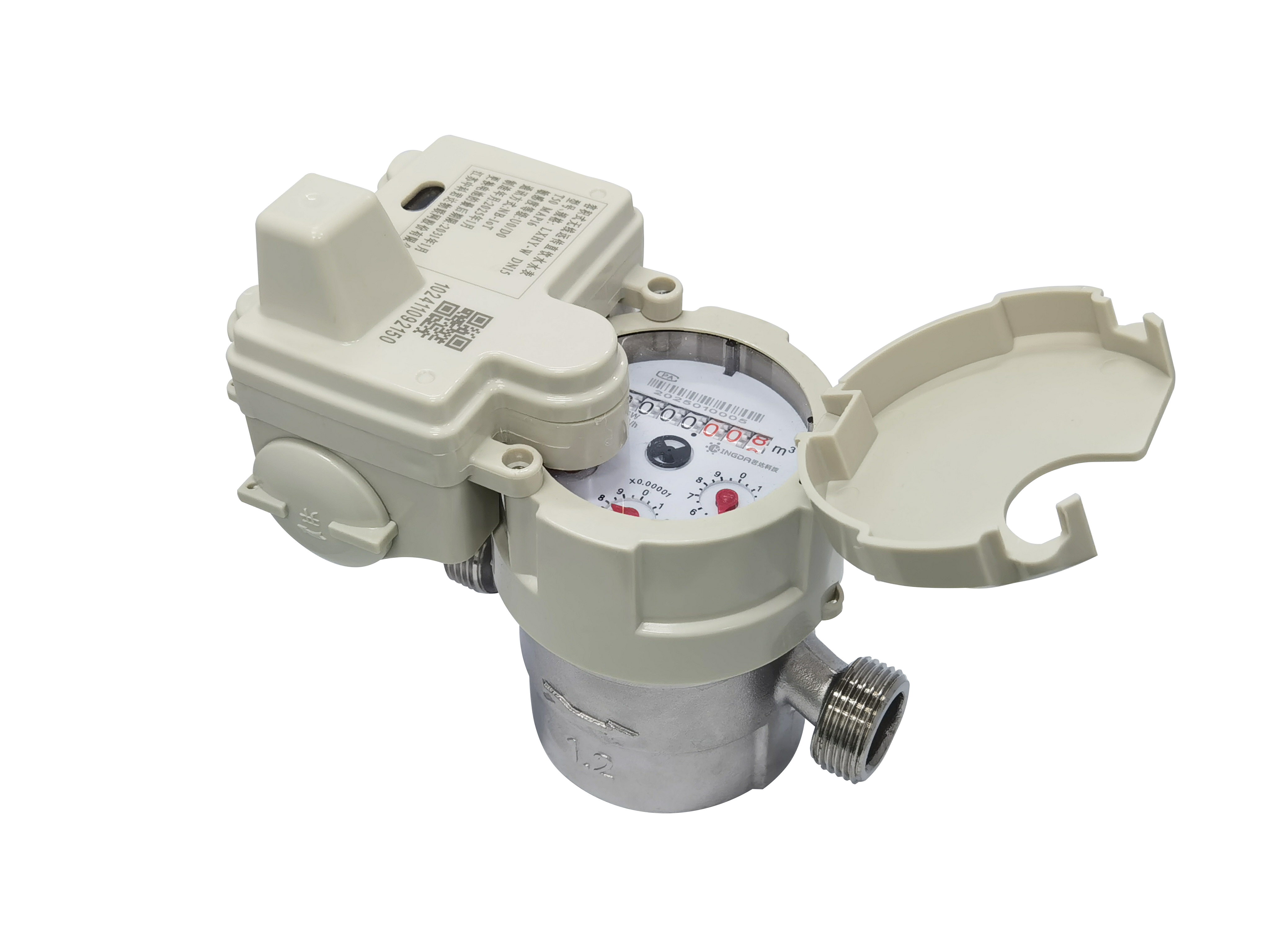

This volumetric water meter adopts a rotary piston measuring mechanism, designed for high-precision metering of domestic potable water. Its register is completely isolated from the water via a hermetic sealing structure, keeping the dial clear and effectively reducing moisture condensation and limescale accumulation. The measuring chamber made of engineering composite materials enhances the meter’s durability and long-term metering stability.

Housing Material Specifications

Nylon: PA66 + 35% glass fiber, with UV-resistant and hydrolysis-resistant additives; PN16 (1.6 MPa); Shore hardness D80–D85.

Copper: HPb58-3 / ZCuZn40Pb2; PN16; internal and external epoxy coating.

304 Stainless Steel: 06Cr19Ni10 / S30408; PN16; precision casting + sheet metal welding; no internal or external coating.

Application Scenarios

• Residential water metering for apartments, villas, new residential communities and renovation projects;

• Commercial housing, resettlement housing and affordable housing projects requiring stable large-scale metering;

• Measuring points with high sensitivity requirements for ultra-low flow rates, supporting pipeline leakage and water loss control.

Functions & Technical Specifications

• Permanent flow rate Q3: 1 m³/h

• Range ratio Q3/Q1: 200 (optional: 160, 125, 100)

• Temperature class: T50 (optional: T30)

• Maximum admissible pressure MAP: MAP16 (optional: MAP10)

• Pressure loss class: Δp63

• Flow profile sensitivity class: U0 (optional: U3, U5, U10) / D0 (optional: D3, D5)
